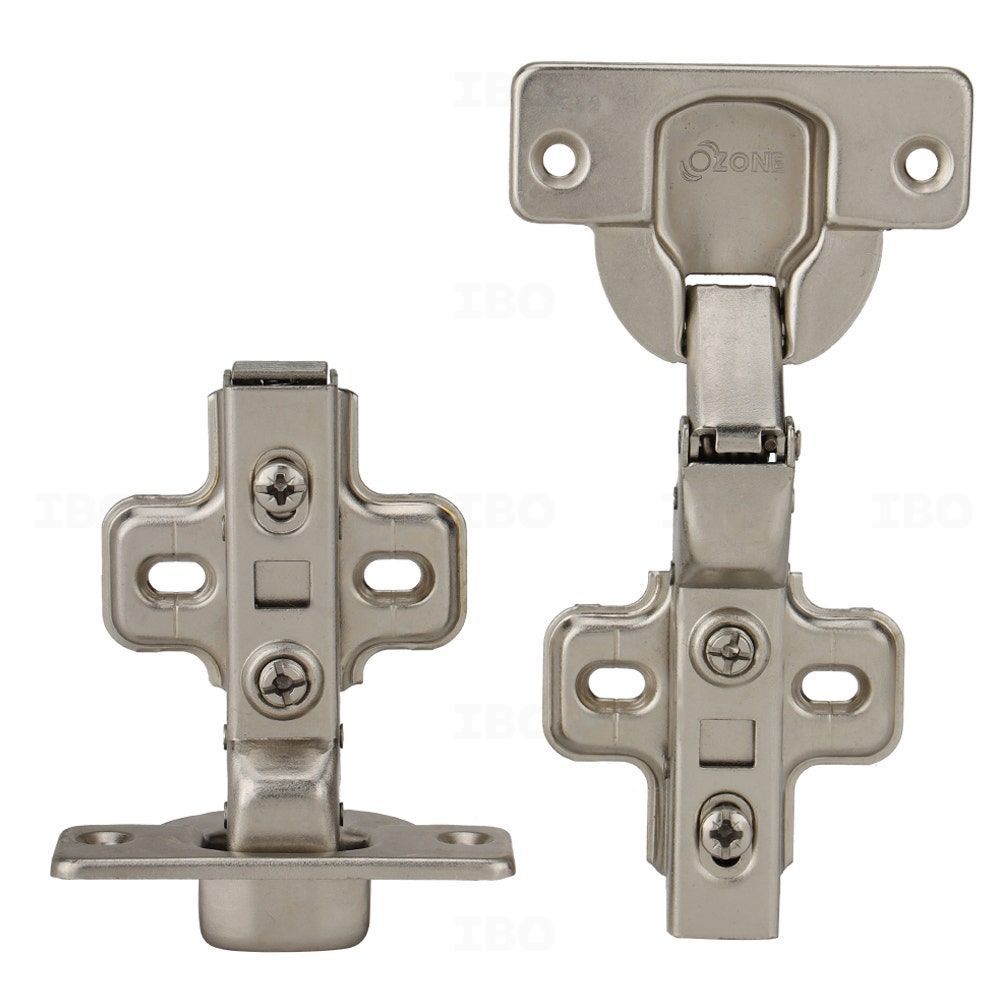

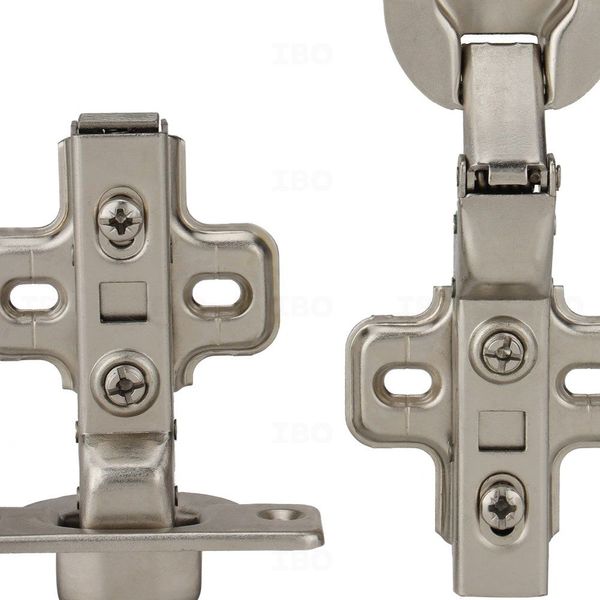

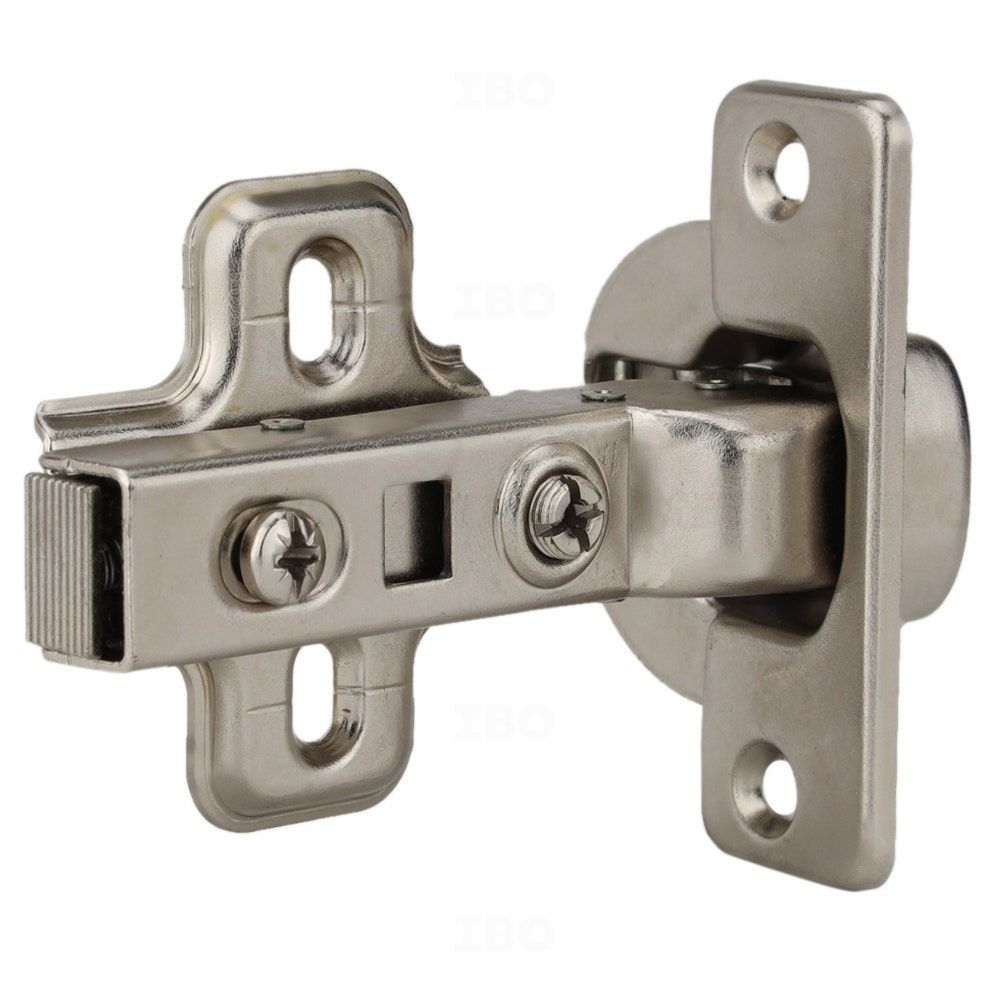

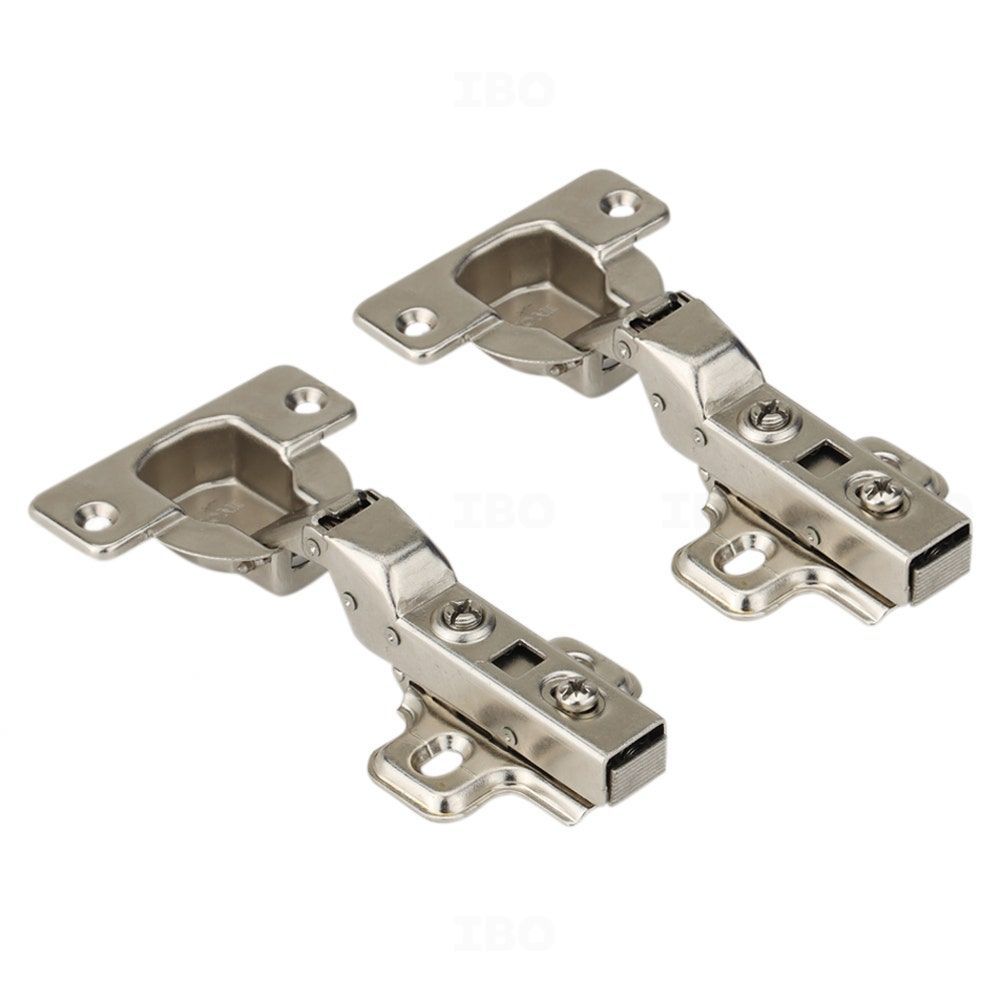

OZONE OEC501 Thick Door/ 8 Crank Soft Close Cabinet Hinge
Brand: OZONE
Delivery by 8 PM on Jun 1
OZONE OEC501 Thick Door/ 8 Crank Soft Close Cabinet Hinge
Pack Of 1N
Finish
Size
Material
Delivery by 8 PM on Jun 1Specification
| Brand | OZONE |
| ISIN | E0QKAZD5XE |
| Offer ID | 1000105918 |
| Brand Collection Name | OEC501 |
| Brand Model Number | OEC-501-B2S-SC, C=8, Std |
| Size | Half Overlay/8 Crank |
| Brand Colour | Silver |
| Cup Diameter | 40 mm |
| Mounting Type | Clip On |
| Operation Type | Soft Close |
| Hinge Cup depth | 12.1 mm |
| Opening Angle | 95 Degree |
| Thickness Support | 25-30 mm |
| Type | Thick Door/ 8 Crank |
| Usage | Cabinet |
| Pack Of | 1 |
| Warranty | 12 Months |
| Country of Origin | China |
| Customer Care Address | Email ID:[email protected], Contact No.:-9310012300 |
| Imported By | Ozone Overseas Pvt Ltd Trilokpur Road Kheri, Kalamb, Nahan Dist.Sirmour (H.P)-173030 |
Product Description
Ozone is committed to bring best quality products with technological edge and superior aesthetics to its customers worldwide for a safer world.
Thick door auto soft-close clip-on concealed hinge (for 25-30mm shutter)
Possible drilling distance on the door (K): 3-7mm
Key Features:
About Brand
Ozone Overseas, an integral part of Ozone Enterprise group, is the leading player in Architectural Hardware Industry and a most popular brand in Electronic Security Segment. With striking global presence & recognition, Ozone constantly strives to provide innovative solutions for architects, builders, specifiers and home owners.
